MeteoShield Professional - radiation shield product photo
Radation shield for a weather station of patented helical design offers many advantages over multi-plate radiation shield designs.

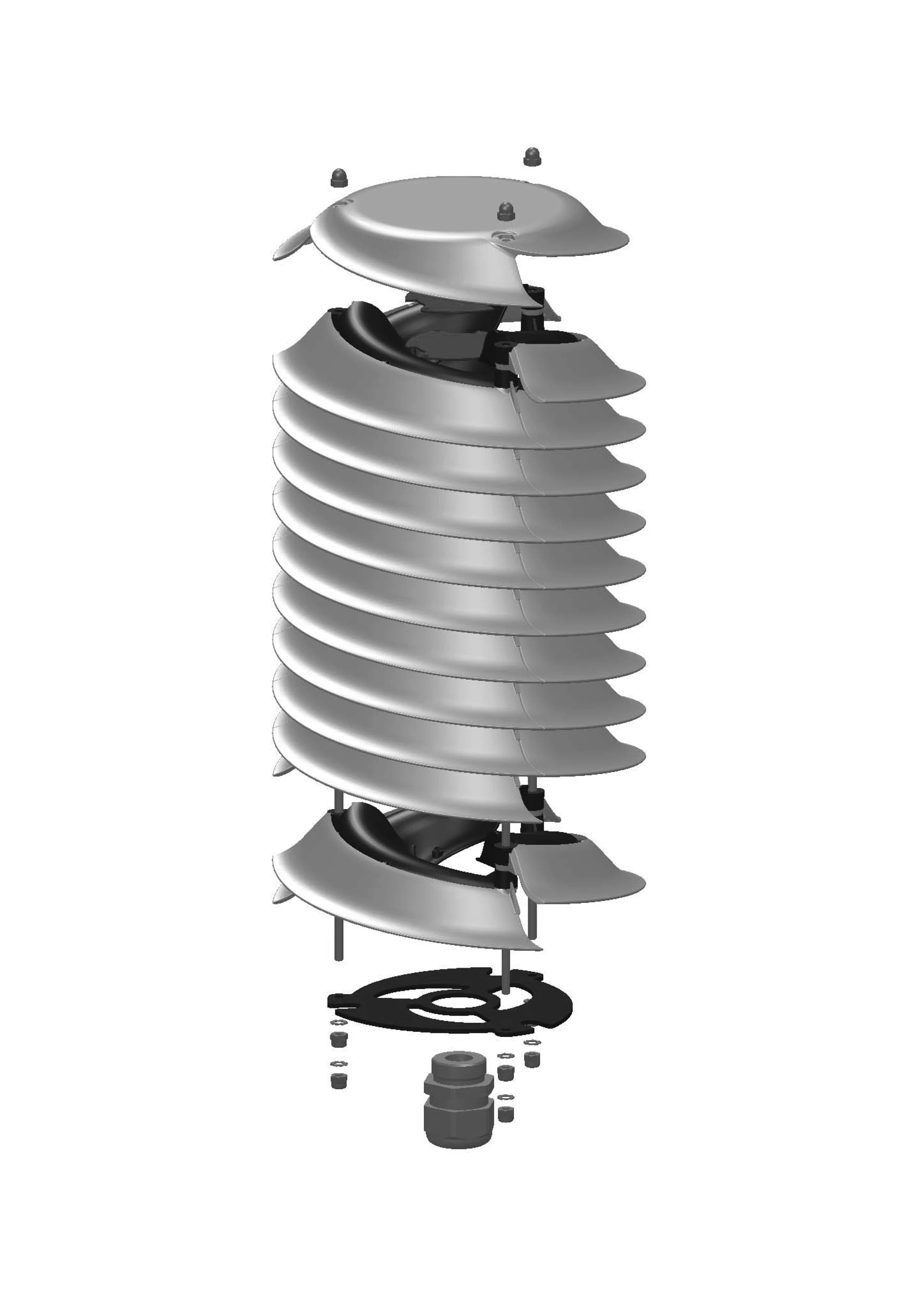

MeteoShield Professional - radiation shield exploded assembly
How a helical radiation shield keeps sensors clean by BARANI DESIGN
Helical sensor shield for temperature sensors cutaway showing how dirt is trapped on the shied keeping the internal sensor clean.
MeteoShield Professional - radiation shield drawing
MeteoShield Professional and pipe mount drawing and dimensions.
MeteoShield Professional in agriculture
Accumulation of dirt can be seen on the shield outer louvers which in combination with the internal helical vortex flow protect the temperature and humidity sensor.
MeteoShield Professional - cutaway illustration of air flow
Illustration of how airflow inside the helical radiation shield organizes into a spiral vortex which rejects dirt and feeds fresh air to the sensor.
MeteoShield Professional - radiation shield with autumn leafs
MeteoShield Professional - radiation shield in an orchard
MeteoShield Professional - radiation shield in a fall sunset
Helical solar radiation shield is not prone to error from low light angles during sunrize and sunset or from reflected sunlight which plague many multi-plate radiation shield designs.
Sunlight gracing the smooth curves of the MeteoShield Professional
MeteoShield Professional - radiation shield with blue skies and fall trees
MeteoShield Professional in an agricultural application
Overnight icing revealed by the morning sun on a MeteoShield radiation shield
Proof of vortex flow inside the helical radiation shield MeteoShield professional
Inner black louvers of Meteoshield Professional show ice accumulation on the right side where the airflow is restricted. On the left side free airflow is keeping the black surface clean. This difference in flow is the proof of how the internal spiral vortex protects sensors from ice or dirt accumulation.
Morning icing covering a BARANI DESIGN weather station in winter
Testing weather station in winter with icing
MeteoShield Professional and the Elliptic Anemometer 2 show minimal ice buildup during an overnight icing event.
Icing glimmering in the sun on the MeteoShield solar radiation shield
Road weather station with the helical MeteoShield Professional
AWOS with MeteoShield Pro and Stevenson Screen
Professional AWOS with a Stevenson Screen and MeteoShield Pro in a WMO research study
